I recently got to spend 4 days on a shoot with Gab707. Gab’s one of my favorite people in fpv since he’s a world class pilot, and he’s super smart and has innovative ideas. But most importantly, he shares his frame ideas with me, like Ichabod and Ichabod Jr. We brainstormed during the shoot and came up with a ton of ideas, and this is one of them.

Gab showed me a little 2” brushed whoop that he uses to carry a full, NOT decased (double negative alert) Hero7. It can barely lift it on 3s, so it’s specifically for those times when he has to hit gaps too small for Squirt. So Gab’s challenge was, can I make something much smaller than the Squirt that can carry a Hero7 comfortably?

My big idea was to use a Squirt-sized power train and just chop off a half inch of prop, instead of using a tiny motor and standard 2” props. Then I could duct it and use a big fat chopped down 4 or 5” prop, and hopefully that’ll produce way more thrust than a standard 2” power train. I also wanted to see if I could use normal fpv components instead of the integrated cam/vtx on most whoops.

With a similar form factor as Gab’s tiny frame (Hero centered on top, battery centered on the bottom), I settled on 53mm for the prop diameter, a compromise between size, fov clearance, and hoped-for thrust (since I’m cutting my own props there’s no reason to adhere to standard sizing). With my carbon cutter on Chinese New Year break, I went ahead and drew up something to be printed in nylon. Who knows, maybe it’ll be stiff enough to be a fully printed frame.

Like Squirt, the ducts are braced at three points, with 20mm standoffs inserted. I extended a flat top across the ducts for two reasons. One, it ties them all together, and two, air accelerates along the flat top as it rushes into the ducts, creating a low pressure area, or more lift. The baseplate was 2mm thick. I stripped a Pteromini for fc/esc stack, grabbed some Rotorgeeks 1407 3200kv’s, and built it up quick to test LOS.

LOS test flights were promising. It lifted a Hero at about 55% throttle with a banshee like sound, but it did it nevertheless. AUW was 356g with a 650 4s. It was time to put fpv stuff on it, but there were some problems.

The design created a sealed compartment for the FC, which meant I’d have to thread wires through the top piece to get to the camera. The camera would be mounted to the top piece as well, so you couldn’t open it up without having to deal with a tangle of wires. And if I wanted to put the rx in the back, away from the vtx, the same problem would apply. Clearly this thing would work better if all the components could be mounted to the bottom plate, without having to thread wires through holes in the top piece.

And there was another problem. I was using cut down DAL 4045’s, like, cutting them WAY down. (I adapted the Squirt’s prop cutter for this size.)

The blades have a lot more pitch close to the root (that’s the whole point), and that put a lot of the tip next to the curved lip of the duct, instead of hugging the wall.

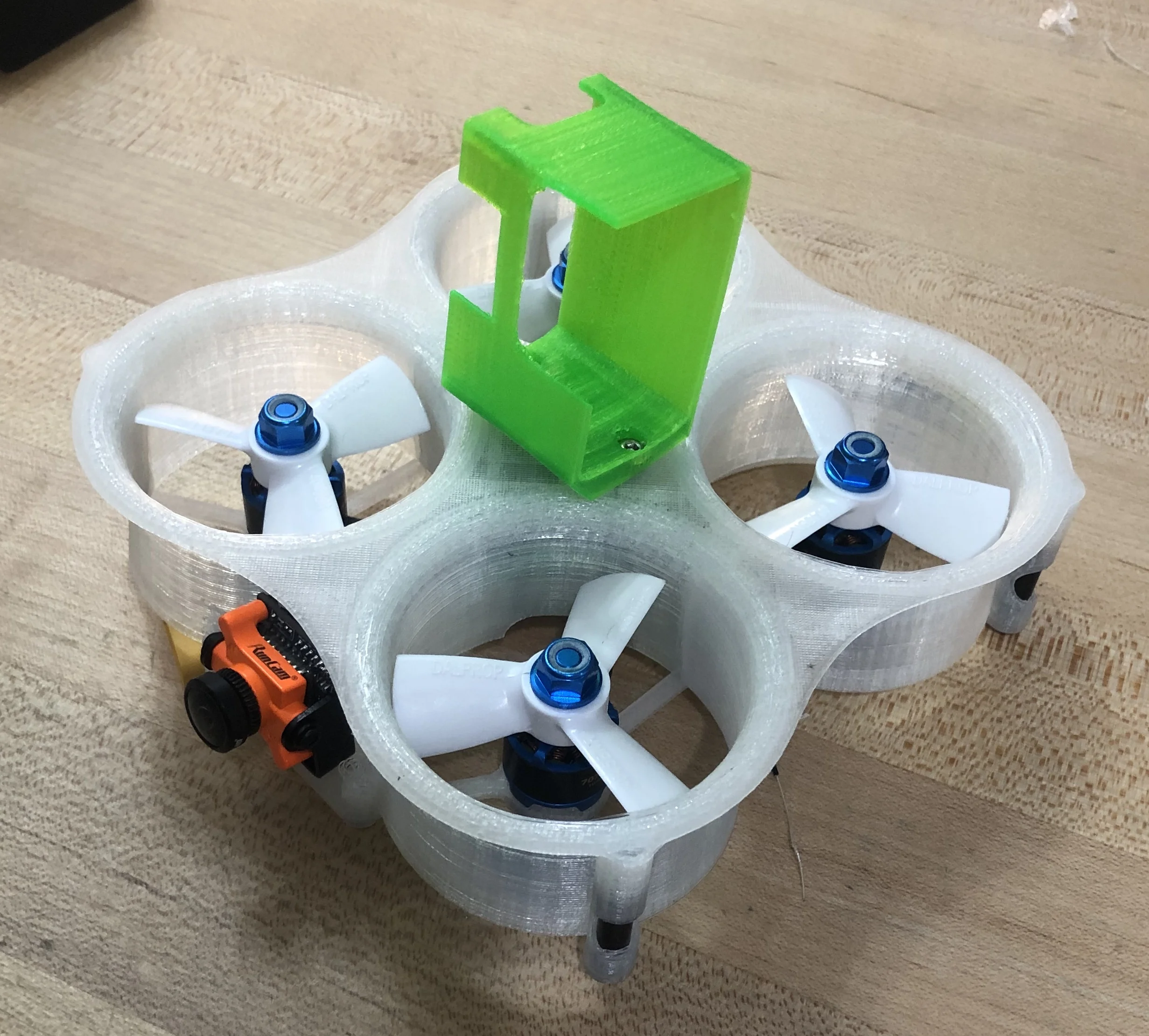

So I started over from scratch. I added a 5mm straight run to the duct profile just for the prop tip to hug. This made the whole thing taller, which was a good thing since I’m using an HGLRC XJB triple stack. I moved the bracing points for the ducts so there’d be a gap for wiring to the front and back. And I added mounting points for a micro cam bracket so that the cam could mount to the bottom plate. The whole thing was the exact same size, but now it’s easier to build and maintain.

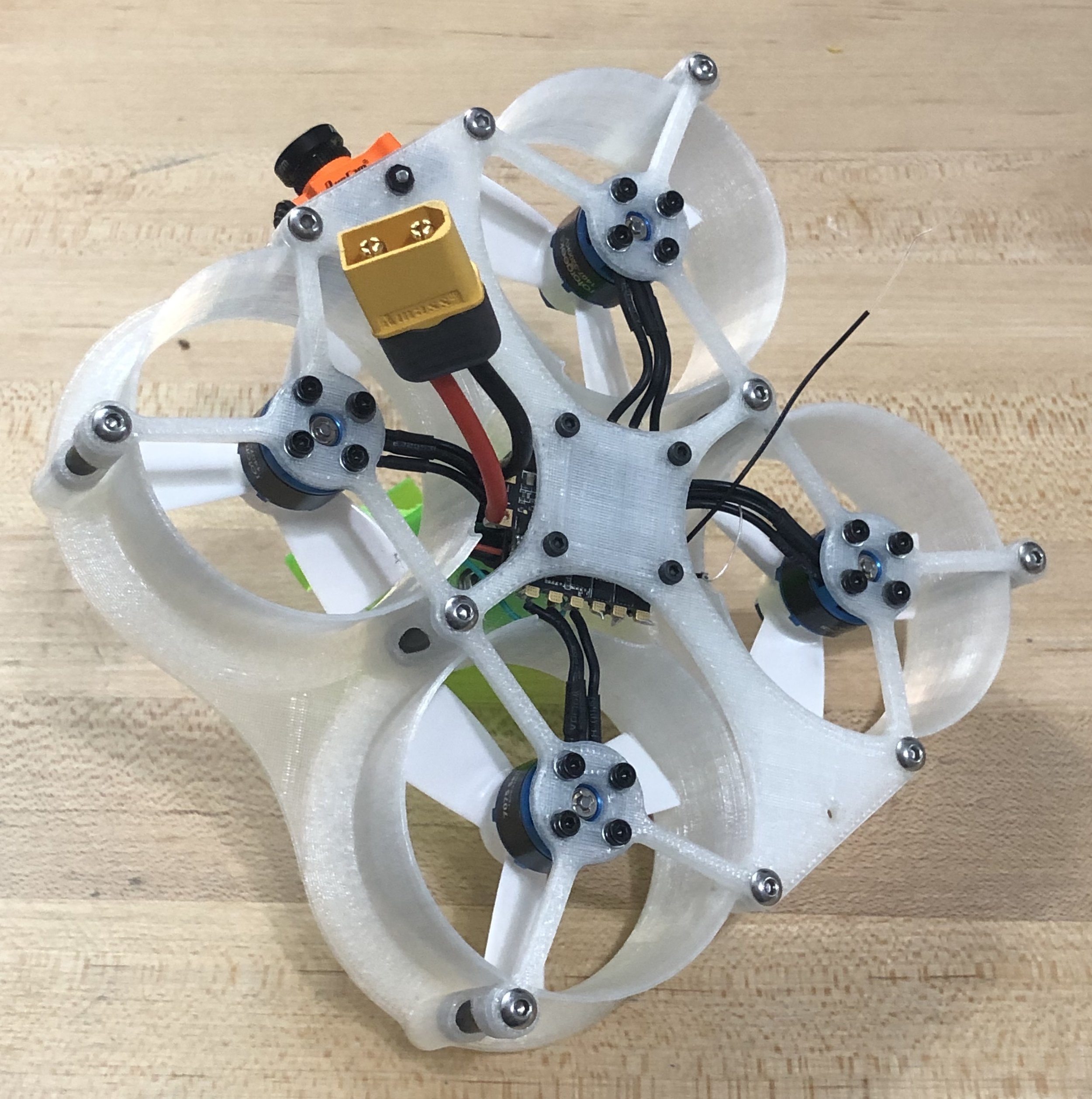

I fired it up and the motors pulsed like crazy and got super hot. I widened the cross braces and it did the same. Then I realized that two of the braces had become too vertical and co-linear, which allowed the motors to vibrate laterally. I begrudgingly added one more brace (braces block thrust), and it finally flew normally.

I did my usual laps around my apartment, and it flew pretty well. One thing that was different was an odd tendency to self level on pitch, as if it was in angle mode. I kept dialing up pitch p and i but the tendency persisted. Still, it wasn’t something I couldn’t adapt to, so I just pushed the nose down more to keep it moving forward.

So I’m pretty excited, this thing seems to work. I charged some batteries to try it outdoors, only to discover that the flutters came back. What happened? Did the nylon baseplate weaken so quickly? I have no idea, but it just confirmed to me that it really needed a carbon baseplate.

Meanwhile, I was chatting with Chad Miller and he mentioned that he’s been playing around with Matterhacker’s carbon infused nylon, NylonX. I’ve used it before, but got tired of dealing with worn out nozzles. Chad offered to print a baseplate so I could keep experimenting while waiting for carbon plates from China.

The print proved to be strong enough, so I got out to fly it in a more open space.

It still had that odd tendency to level off, but as you can see it just takes a little forward pressure on pitch to keep it smooth. The accidental move at the end is the Mattyest I’ve ever been.

Next Steps

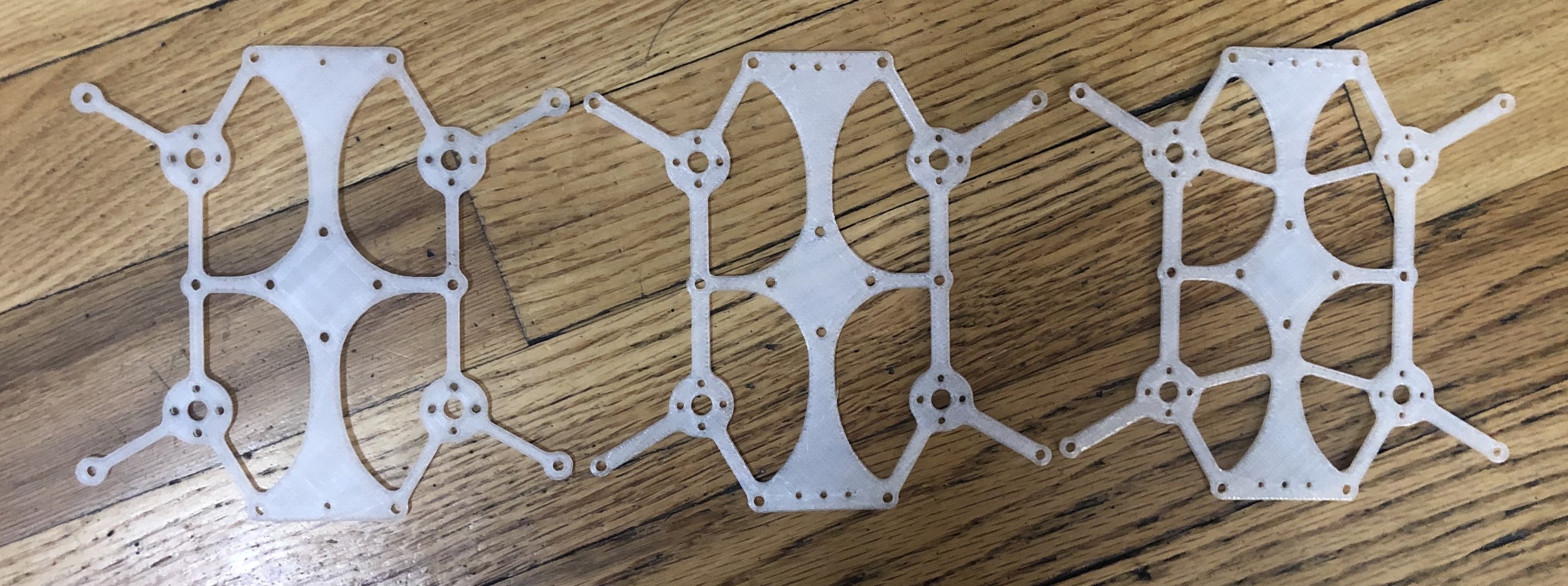

I haven’t flown any 2” brushed whoops, but I’m going to assume that this thing lifts a Hero better. Carbon baseplates are being cut now, but in the meantime if you want to play along stl’s are here, including the smaller prop cutter. The baseplate has been redesigned to have 3 braces again, but now evenly spaced at 120 degrees. You’ll want to print that with something stiff like NylonX. I print the top upside down with Taulman 645, and the Hero mount is TPU.

And Then…

I have an extra Craftbot that I got to deal with the Squirt V1 rush sitting idle, and I found a steel nozzle and some NylonX lying around, so I fired it up to print more baseplates. Then Justin Oakes of Droneworks stopped by to pick up a Squirt, and he saw Nutmeg and really wanted one. I had parts lying around, so I woke up one day and decided I was going to build another Nutmeg. And the crazy thing is, this one flew better. It held pitch totally normally. Why? I have no idea, but I was just glad to find that the design didn’t have any inherent bad flight characteristics.

Also, I remembered to take some build pics this time.

I hadn’t flown one battery all the way down without pausing or crashing, so I took it around the apartment and was pleasantly surprised that a 650 4s flew for 3 whole minutes. It’s also a good way to check in on the 3d printers.

Then Evan Turner asked if it could take a bigger battery, which seems insane to me, but ok, why not give it a shot. I put a 1050 on it and it looked silly, with the battery blocking a lot of the ducts.

So it’s heavier, with thrust blocked. Shouldn’t fly, right. Oddly enough it felt the same, and flew for 4:30. Just when I think I understand anything about quads, I’m proven wrong.

And here’s some unstabilized footage so you can get a better sense of how it flies.

Then Clint Hild built a 5s rig, with these specs:

BrotherHobby 1407 2800kvmotors
Aikon 20x20 AK32 35amp ESC
HelioSpring Mini FC
Team BlackSheep Unify Nano 32 VTX & Crossfire Nano RX
Luminier Micro Axii
Whitenoise 20x20 VTX mounting board.
Twenty WS2812 LEDs
460mah 5s RotorX packs
Custom cut props (originally Gemfan 4052)
Foxeer Predator FPV Cam
Total weight with Hero ready to fly.... 362.2g

His hovers at about 45%. Guess I gotta build myself another one now. Clint has a nice Rotorbuilds writeup here, lots of good info.

Carbon Finally Arrives

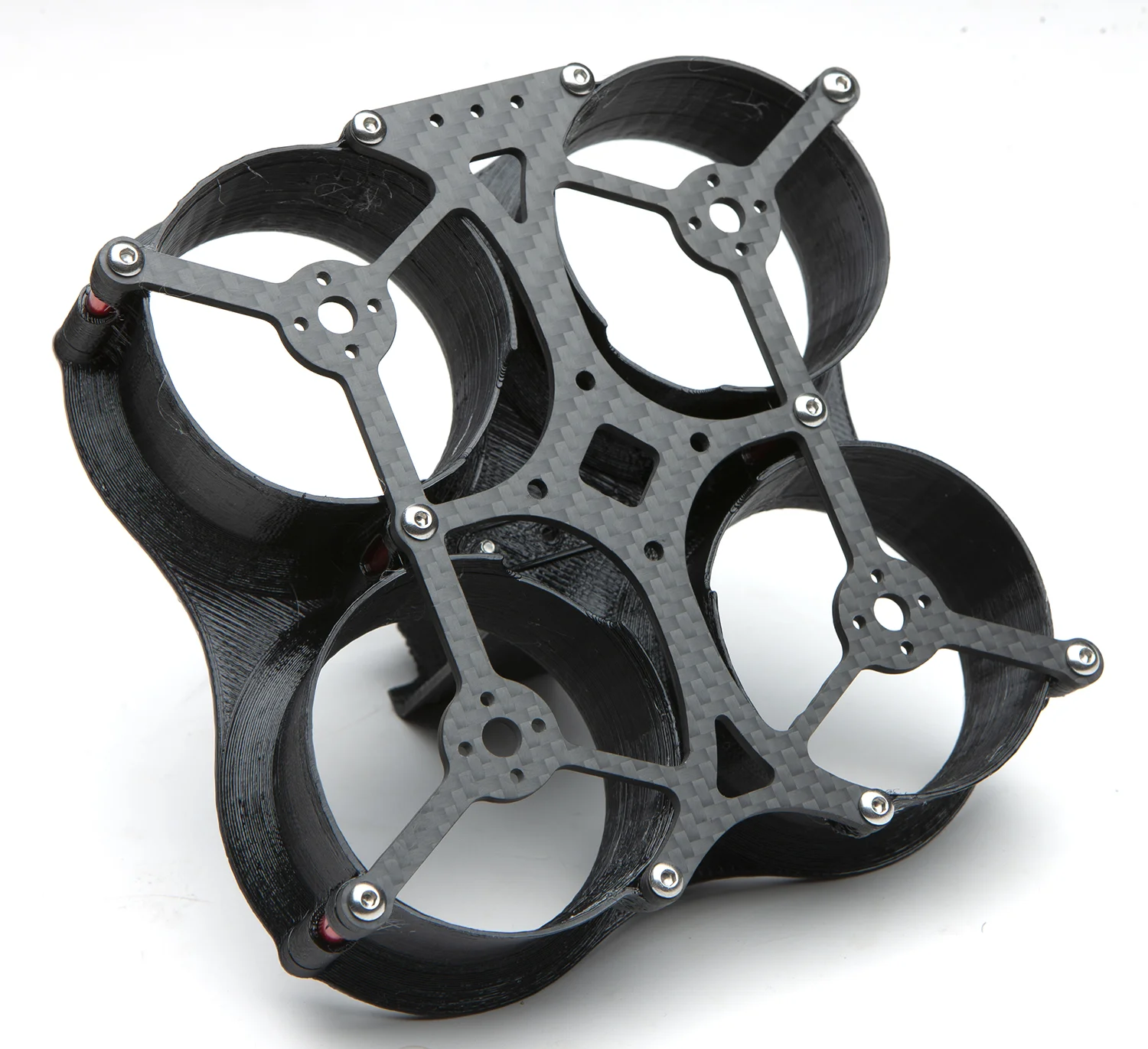

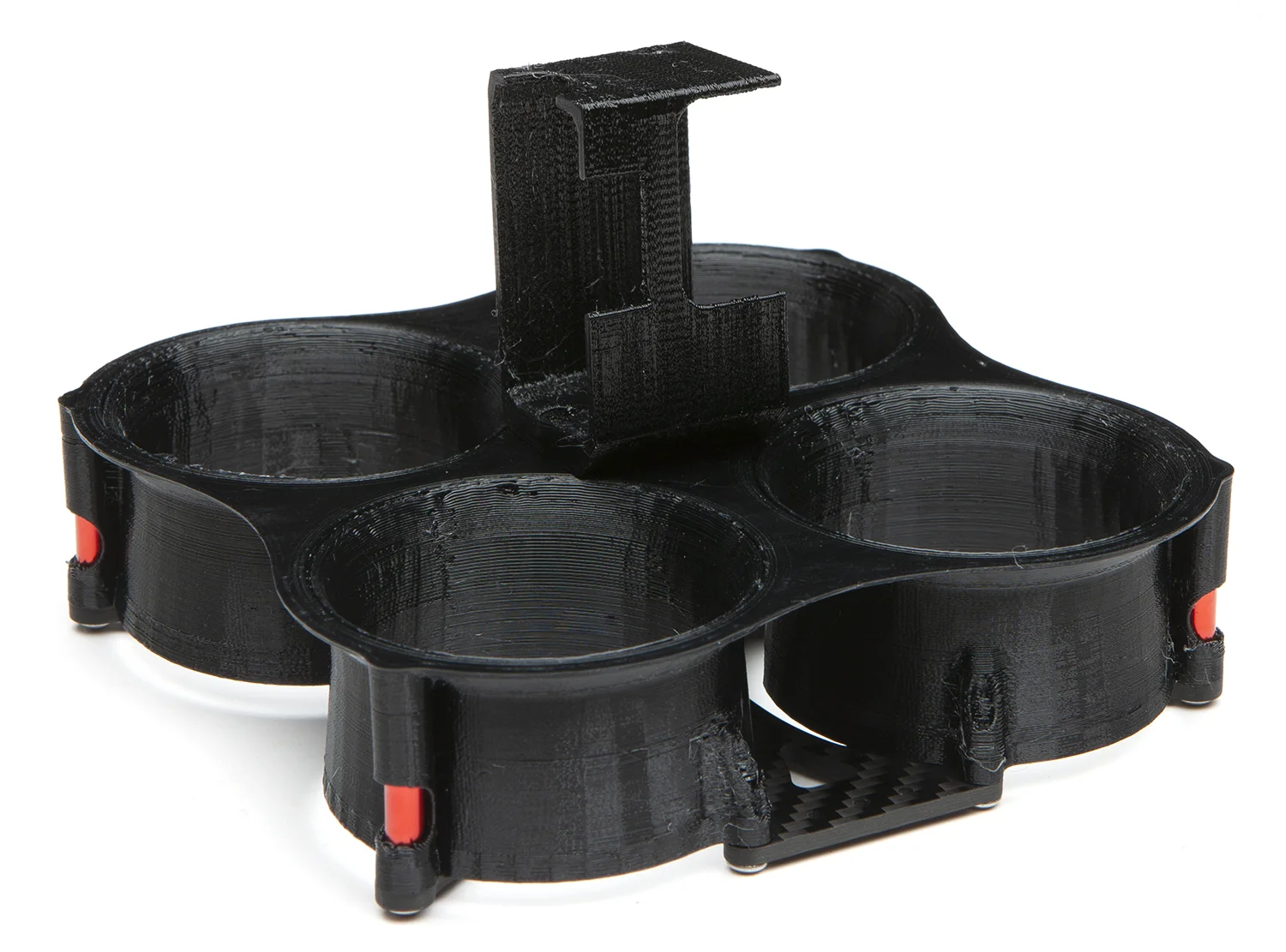

So, if you ever design anything don’t do it around Chinese New Year. It took forever for the carbon to show up. I tweaked the duct file for TPU and printed it up in black, and moved the parts over.

Not surprisingly it flew just fine like this, and here’s yet another tour of my apartment as proof.

You can buy it here. 3d parts files are here. You can always print all of it if you don’t want to buy a carbon base plate, but it’s so much nicer with real carbon, and the stiffness of the carbon allows the use of a TPU top, which is way more durable (I ended up pulling the baseplate STL when I found out that someone had sent the file to a factory for a run of carbon. This is why we can’t have nice things).

6s HD Nutmeg

If you want to go faster you can add voltage or increase efficiency. I used to think think adding voltage was the caveman approach, but then I learned increasing efficiency, especially by improving aerodynamics, doesn’t do much with drones. What I’m trying to say is, let’s make a 6s Nutmeg.

The introduction of the Caddx Vista made HD Nutmeg possible – it juuuuust barely fits inside. However, the Vista runs hot and there’s little ventilation inside the Nutmeg. Oh well, not guts no glory, might as well give it a shot. I used an iFlight Succex stack and some 2350kv motors. The kv turned out to be way too low (it wouldn’t even lift off on 4s), so I took the Rotorgeeks 1407 3200’s off my 4s Nutmeg and it flew, albeit with super hot motors.

My fears about overheating turned out to be well founded, after a few days of flying and tuning I had no video. I was experimenting with a lot of props and not getting the best flight performance, so this setback kinda wore me out and I set the project aside.

I was about to toss the Vista in the trash but decided to wire it into another build just to make sure it was dead, and lo and behold it was fine. Turns out it was the FC that stopped sending it power. Newbee had sent me their new 2ox2o Infinity stack, so I decided to give it another go. There was some talk on Facebook about Gemfan Squirt props so I gave them a try.

The new setup finally flew great. It still doesn’t flow like a Squirt, but after a couple minutes you adapt. The motors are still hot but hey it’s 3200kv on 6s and I just decided to lower the d term a bit as many advised and go with it.

We had a rare warm day in March so I asked Randy Slavin to nutmeg me on my Onewheel. After one battery he had it dialed.
