Bass Components

The back is bass_final_back

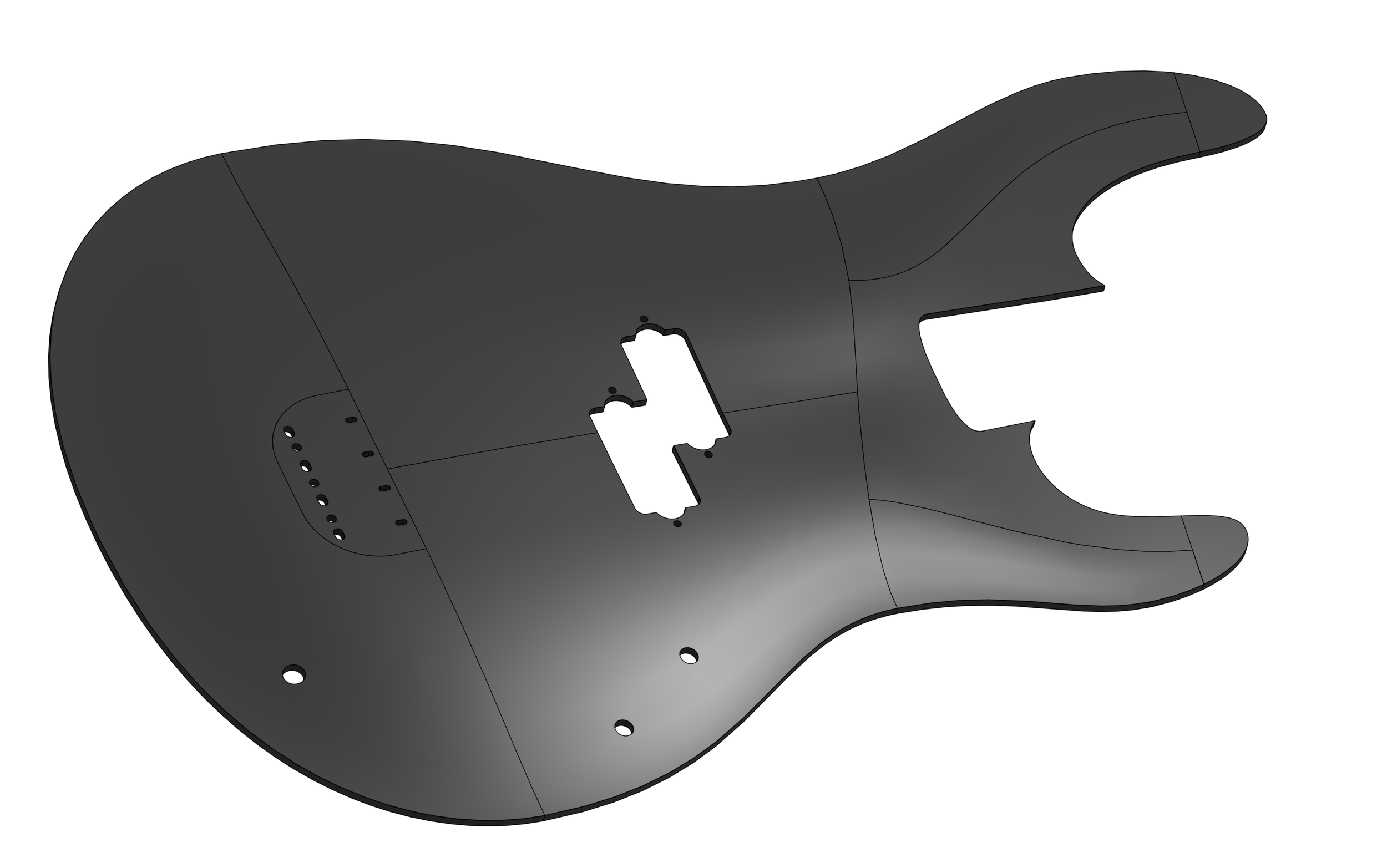

The top is bass_1fillet_top_nopiezo

Each unit also has:

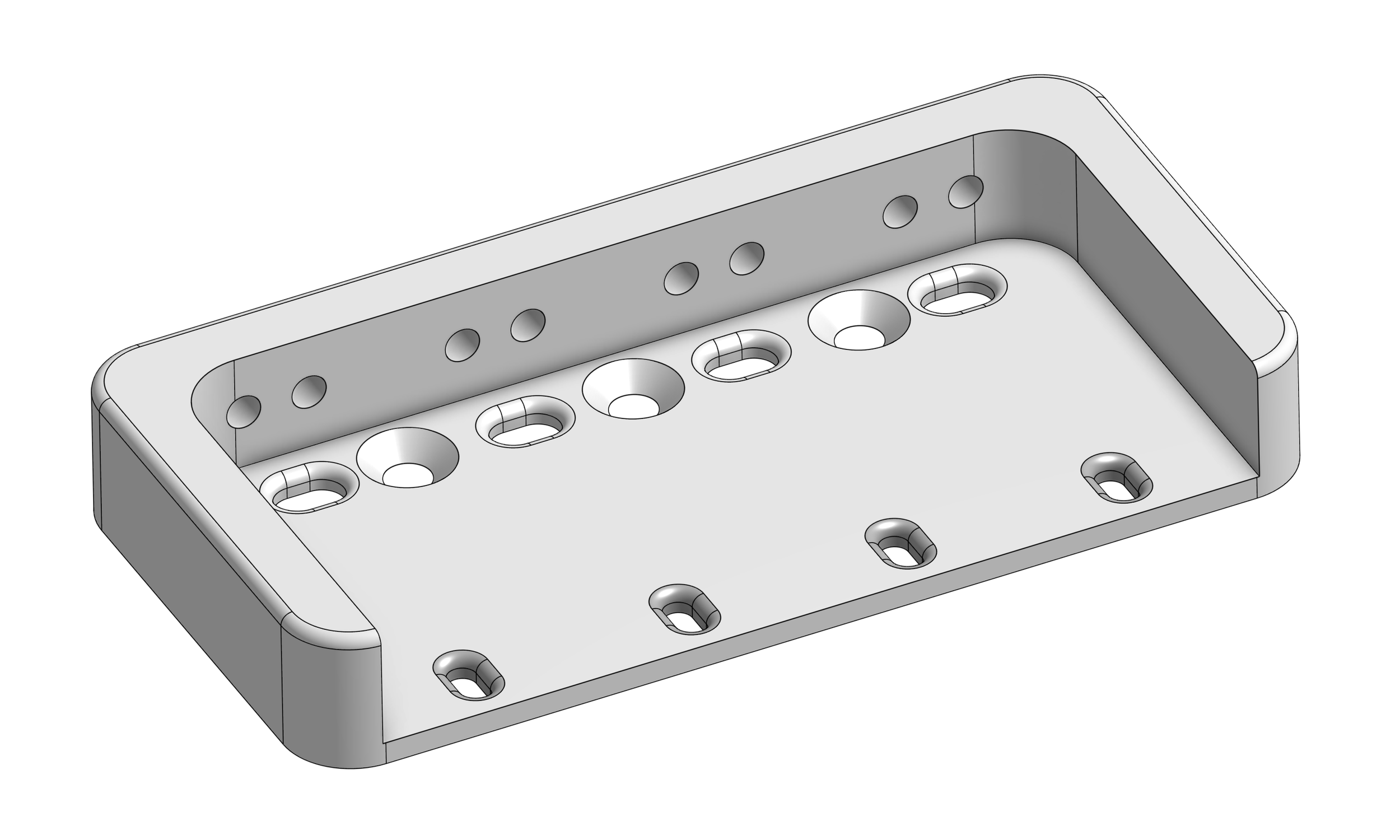

bass_final_brdige which is aluminum anodized black. no holes are threaded on this part

bass_final_bridgenut which is aluminum not anodized. 3 M4 holes are threaded.

2 pcs bass_pickupholder which is aluminum not anodized. all m3 holes are threaded.

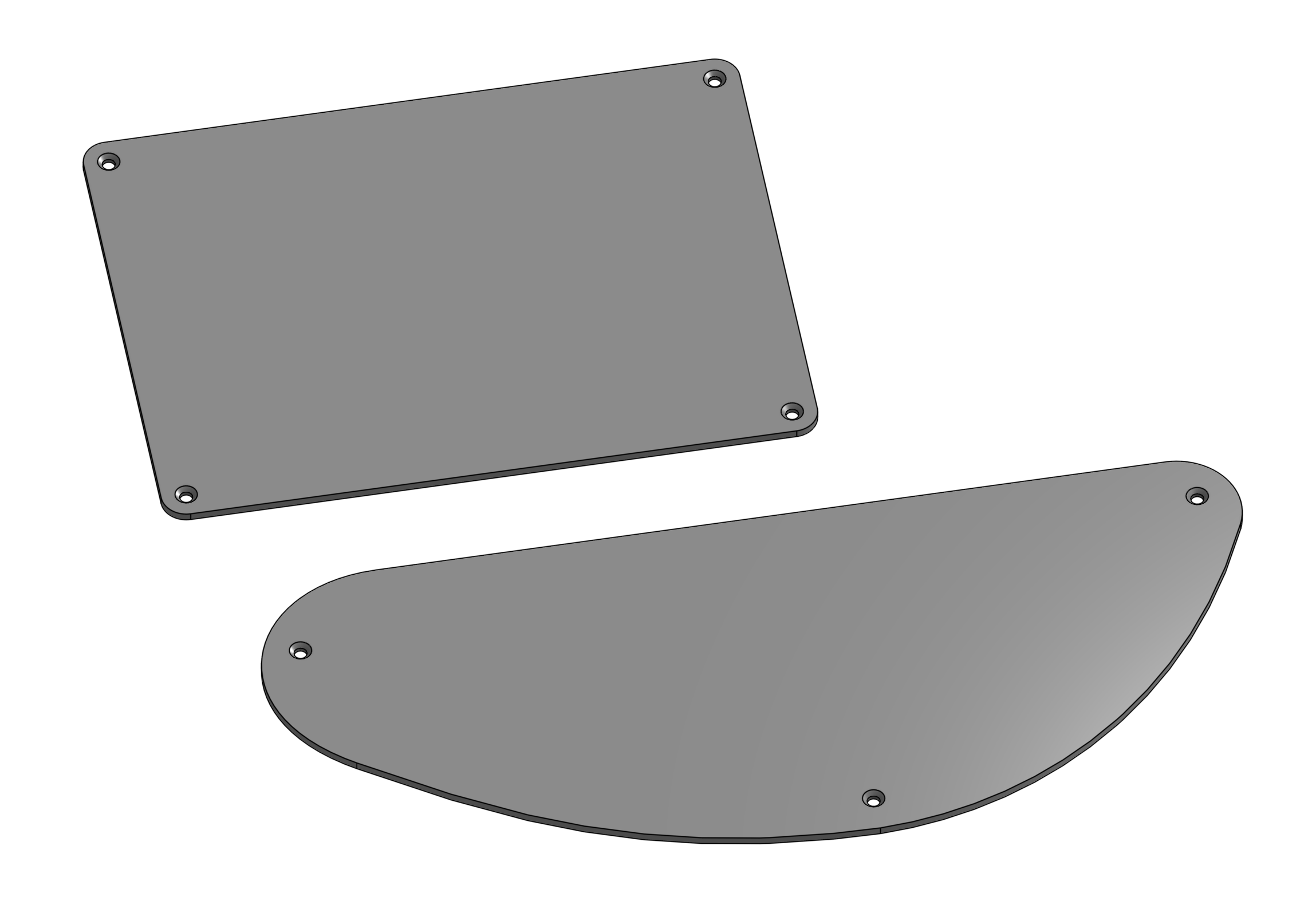

midpanel and lowerpanel are 2mm carbon plates. Holes are countersunk as shown. I’d like you cut one of each when the bodies are done and let me know if I should adjust the size before cutting all 50.

Guitar Components

The back is guitar final back.step

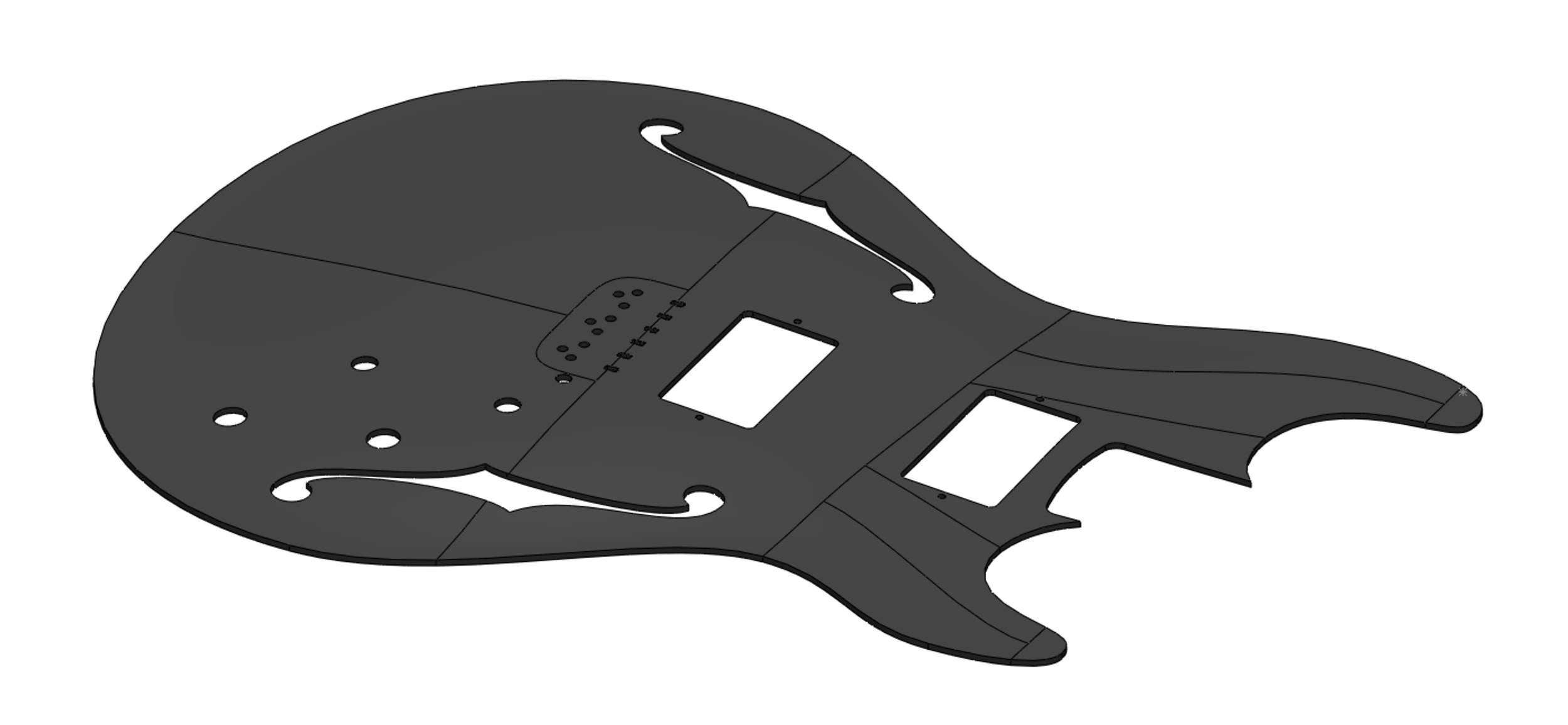

The top is guitar 2025 top.step

Each unit also has:

ghost bridge, aluminum, anodized black, no threaded holes

shencaster after1stbuild strat ghost trem block, aluminum, no anodizing, threaded m4 and m5 holes

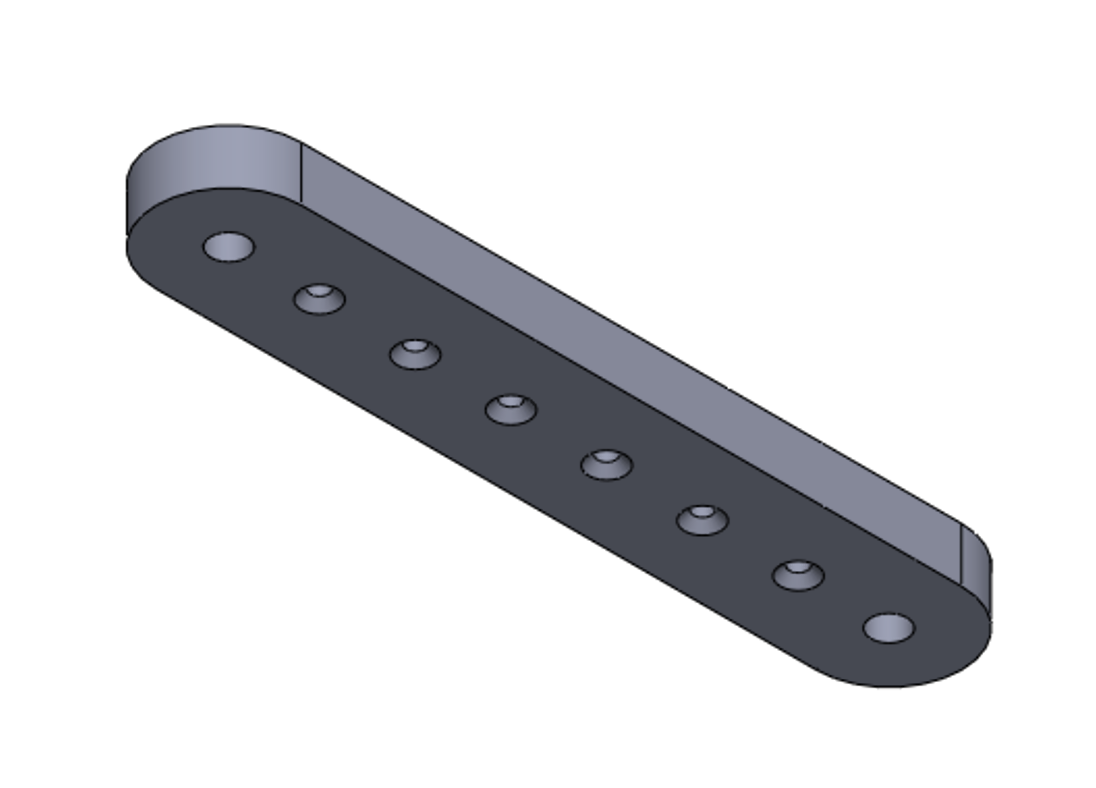

shencaster string holder, aluminum, no anodizing, threaded m4 holes

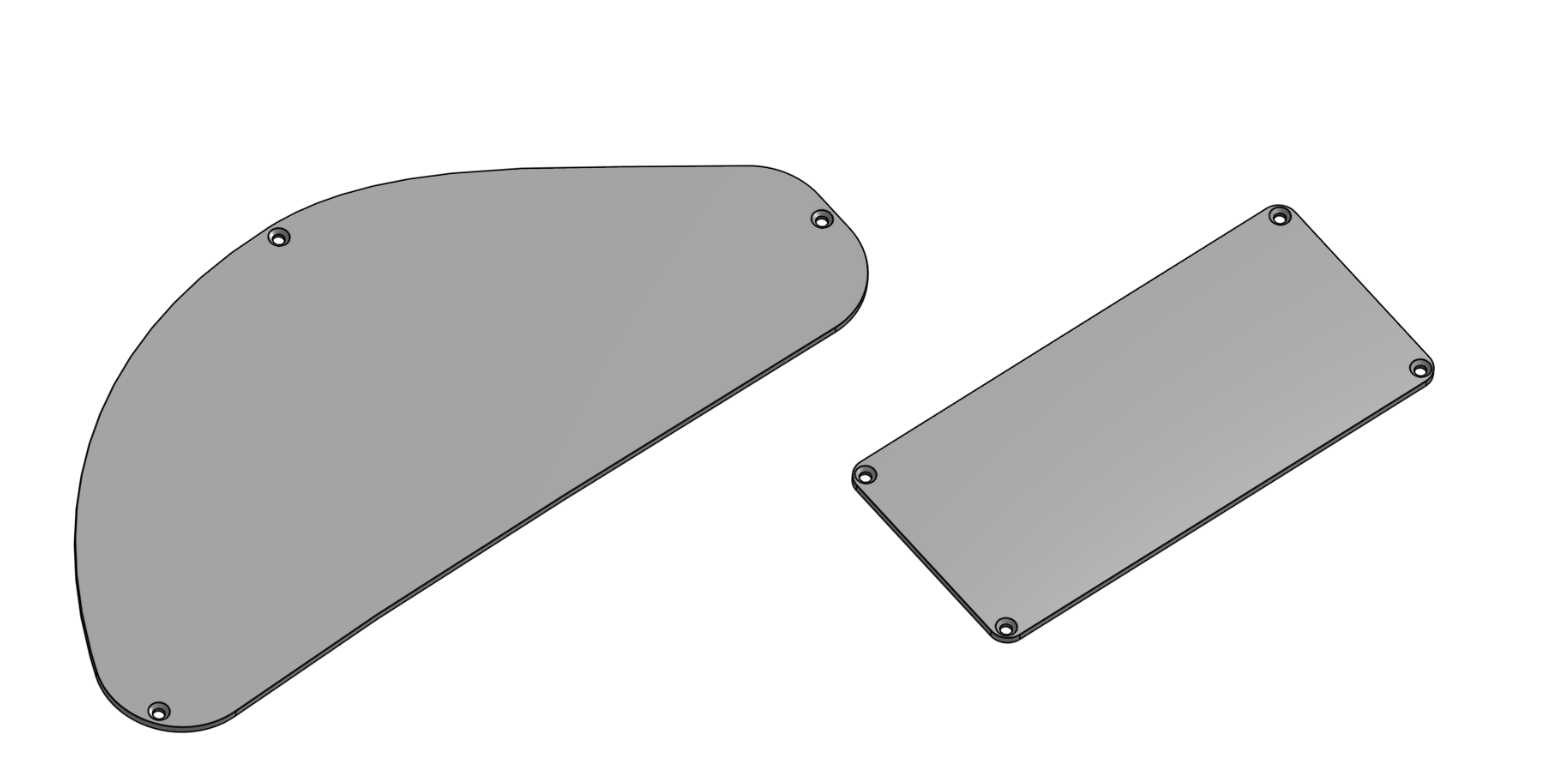

guitar midpanel and guitar lowpanel, 2mm carbon, countersunk holes on the sides as shown. Like the bass please cut one and test fit before cutting all of them.
